Introducing French Creek Production’s 9′ Aluminum Tripod and 50′ 3-Way Rescue Unit. This tripod kit meets all applicable ANSI and OSHA standards. The difference between this 9′ tripod system and the S50_-M9 is that this one has the 3-way rescue unit, but not the material winch.

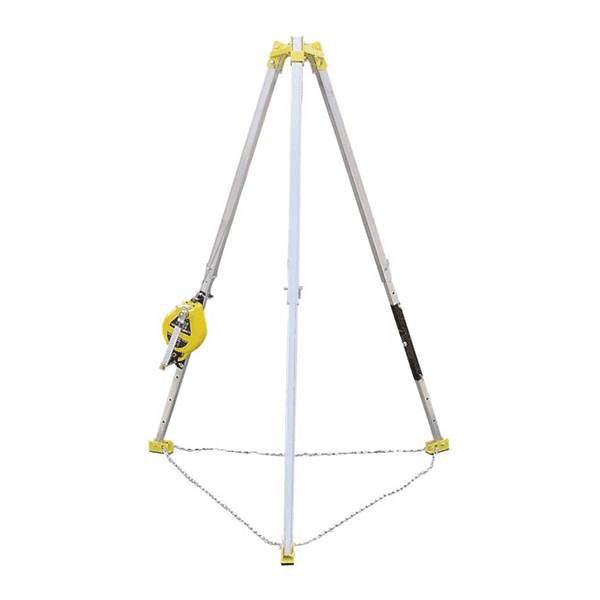

9′ TP9 Aluminum Tripod:
This confined space tripod is made to withstand 5000 lbs. of vertical load, yet is lightweight and portable, offering quick and easy single person setup. TP Series tripods feature adjustable/locking aluminum legs, safety chain, non-slip rubber safety shoes, and two attachment points on the steel head.
- Aluminum Legs
- Adjustable up to 9ft
- Steel head and Feet
- Safety Chain
- 2 anchorage points on head
50′ Galvanized Steel (R50G) or 50′ Stainless Steel (R50SS) 3-Way Rescue Unit:
This is a self-retracting lifeline which may be raised and lowered for rescue and retrieval. If a worker falls, the unit will instantly lock up and arrest the fall. The system may then be used in winch mode, raising or lowering the worker to safety. The R50’s friction brake prevents the crank handle from free-wheeling while under a load. The unit is manufactured of a durable, light cast aluminum housing, and includes a mounting bracket for the tripod or French Creek’s Davit Systems, a #45 split pulley, and carabiner for attaching the lifeline to the tripod.
- Mounting bracket
- #45 split pulley
- 5.1:1 Gear Ratio
- 350 lb capacity for personnel
(Included) TP9 – 9′ TP9 Aluminum Tripod
(Included) R50G or R50SS 50′ Steel 3-Way Rescue Unit
