Rotation Resistant 3/8

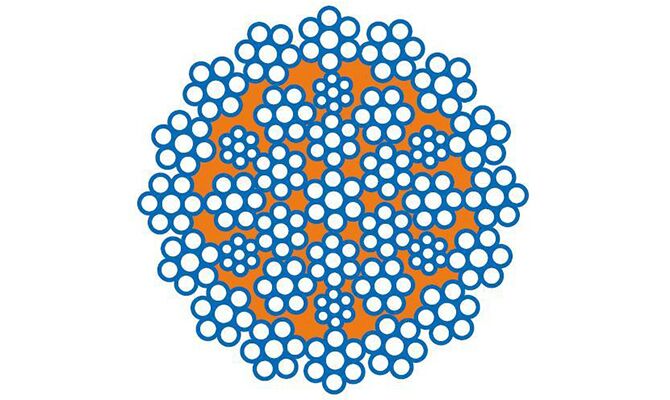

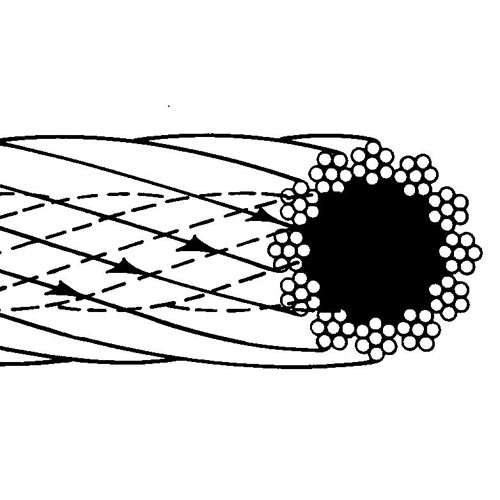

Rotation resistant wire rope refers to a series of steel ropes which minimizes the tendency to spin or rotation under load. These wire ropes boast special design – the outer layer is twisted in the reverse direction of inner layers for counteracting torsional forces generated from multi-layers of strands.

To achieve the resistance against the spin and rotation, all wire ropes are composed of at least two layers of strands. In general, more layers a rotation resistant wire rope has, more resistance it will boast. For example, 2-layer ropes is much easier to spin and rotate than 3-layer ones. Meanwhile, if one end of free rotation is allowed, 2-layer rope can only develop 55% to 75% of its breaking strength comparing with 95% to 100% of 3-layer ropes.

Category:

Additional information

Break Strength

13,260 lbs

Wire Rope Class

Bright

Material

Steel

Core

Steel

Finish

Bright

Wire Rope Diameter

3/8"

Rope Construction

19 X 7

Weight Per Foot

0.18
